NSYSBM15308 | Schneider Electric

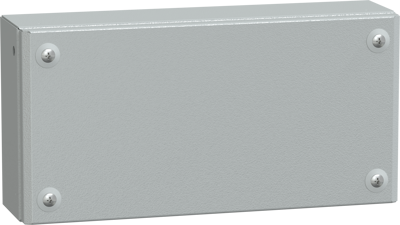

Steel enclosure, (L x W x H) 150 x 300 x 80 mm, light gray (RAL 7035), IP66, NSYSBM15308

Order No.: 02P2513
EAN: 3606480520037
MPN:
NSYSBM15308
Series: Spacial SBM
NSYSBM15308 Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
35.3549 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
35.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
35.3549 €

Steel enclosure, NSYSBM15308, Schneider Electric

Spacial SBM steel industrial box for a multi-purpose application. It is designed for use in harsh environments. It is certified by LR, DNV-GL, UL and BV. This box has a nominal height, width and depth of 150 mm, 300 mm and 80 mm, respectively. It is made of sheet steel and has a grey color (RAL-7035) with a polyester powder surface finish. The box consists of 4 cover screws, a cover and a body. It has a captive screw PZ2 outside the sealed area.

The cover can be removed for maintenance purposes, the net weight of the enclosure is 1,754 kg It is wall mounted and has a flat face box type. The cover is fixed with a half turn metal screw and has a plain door type. The box has an IK10 (IEC62262) rating and an IP66 (IEC60529) rating It is designed to operate in an ambient air temperature of -35-80°C and store in an ambient air temperature of -35-60°C.

Technical specifications
Breite 300 mm
Farbe lichtgrau
Höhe 80 mm
Länge 150 mm
Material Stahl
RAL-Farbnummer 7035
Schutzart (IP) IP66
Logistics
Ursprungsland IN
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
