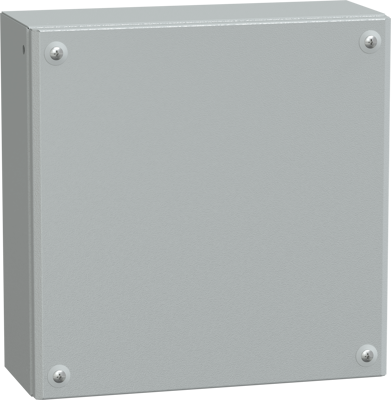

Steel enclosure, NSYSBM303012, Schneider Electric
Spacial SBM steel industrial box for a multi-purpose application. It is designed for use in harsh environments. It can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529). This box has a nominal height, width and depth of 300 mm, 300 mm and 120 mm, respectively. The box is made in grey color (RAL-7035) with a polyester powder surface finish. The box consists of 4 cover screw, a cover and a body. It has a captive screw PZ2 outside the sealed area.
The cover can be removed for maintenance purposes, the net weight of the enclosure is 3,324 kg It is certified by LR, DNV-GL, UL and BV and complies with IEC 62208 standards The box can be wall mounted and. The cover is fixed with a half turn metal screw The ambient air temperature for storage and operation is -35 to 60°C and -35 to 80°C respectively.
