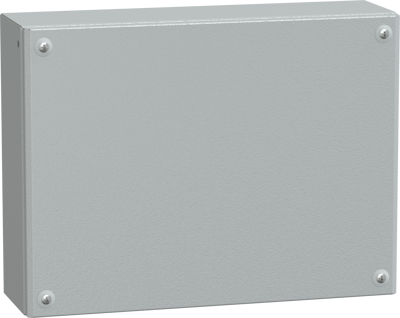

Steel enclosure, NSYSBM304012, Schneider Electric
Spacial SBM steel industrial box is designed for a multi-purpose application It is certified with LR | DNV-GL | UL | BV and has a nominal height, width and depth of 300 mm, 400 mm and 120 mm, respectively. The box is made from sheet steel in grey color (RAL-7035) with a polyester powder surface finish. The box consists of 4 cover screws, a cover and a body. It has a captive screw PZ2 outside the sealed area. The cover can be removed for maintenance purposes, the net weight of the enclosure is 4,112 kg.
It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and. It has a high resistance to dust and water with an IP66 rating (IEC60529) The box is wall mounted and. The cover is fixed with a half turn metal screw The enclosure type is a flat face box The ambient air temperature for storage and operation ranges from -35-60°C and -35-80°C respectively.
