NSYTBP16128T | Schneider Electric

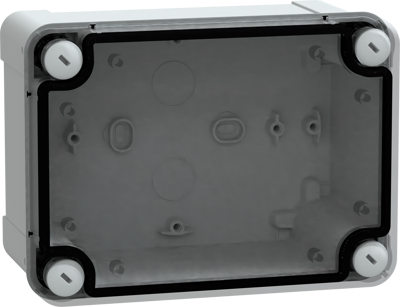

PC enclosure, (L x W x H) 164 x 121 x 87 mm, light gray (RAL 7035), IP66, NSYTBP16128T

Order No.: 02P2694
EAN: 3606480165795
MPN:
NSYTBP16128T
Series: Thalassa TBP
NSYTBP16128T Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
21.2772 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.28 € *
Price list
Quantity
Price per unit*
1 pcs.
21.2772 €
2 pcs.
20.3490 €
4 pcs.
19.2304 €
6 pcs.
18.2308 €
*incl. VAT plus shipping costs
**Subject to prior sale

Polycarbonate enclosure, NSYTBP16128T, Schneider Electric

This TBP is a wall-mounted box made of polycarbonate and is designed for multi-purpose applications This TBP has a one-piece moulded body with a grey (RAL 7035) colour and a low transparent cover. The enclosure has a nominal height, width, and depth of 164 mm, 121 mm, and 87 mm, respectively. The internal dimensions of the box are 150 mm x 105 mm x 80 mm with a net weight of 0,34 kg. The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP The box is UL and TÜV certified and offers a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions,, it is also resistant to fire up to 960 °C in accordance with IEC 62208 standard.

The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262). It can be stored in ambient air temperatures ranging from -15 to 60 °C and used in ambient air temperature ranging from -25 to 80 °C without affecting its performance The product is sold in a set of two and is suitable for outdoor mounting with canopy or shelter and anticondensation valve.

Technical specifications
Breite 121 mm
Farbe lichtgrau
Höhe 87 mm
Länge 164 mm
Material PC
RAL-Farbnummer 7035
Schutzart (IP) IP66
Logistics
Ursprungsland HU
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
