NSYTBS1179H | Schneider Electric

ABS enclosure, (L x W x H) 116 x 74 x 94 mm, light gray (RAL 7035), IP66, NSYTBS1179H

Order No.: 02P2729
EAN: 3606480165238
MPN:
NSYTBS1179H
Series: Thalassa TBS
NSYTBS1179H Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
12.1856 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.19 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1856 €
2 pcs.
11.6382 €
3 pcs.
11.1384 €
6 pcs.
10.5315 €
*incl. VAT plus shipping costs
**Subject to prior sale

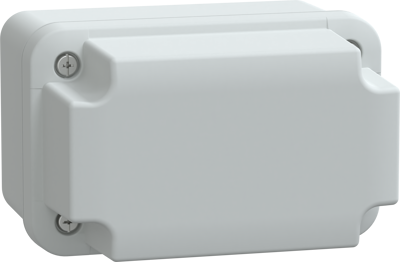

ABS enclosure, NSYTBS1179H, Schneider Electric

This TBS is a multi-purpose wall-mounted box made of ABS (acrylonitrile butadiene-styrene). It has a height, width, and depth of 116 mm, 116 mm, and 94 mm, respectively. The internal dimensions of the box are 105 mm x 65 mm x 85 mm It comes in a grey (RAL 7035) color and has a high plain cover that is Fixed with captive flat screws. The box is certified by TÜV and has a class II electrical insulation that prevents electric shocks, it is also fire resistant up to 650 °C in accordance with IEC 60695-2-11 standard and offers high protection against dust and water with an IP66 rating (NEMA 4,4 x ) and impact resistance with an IK07 rating (IEC 62262).

The box can be stored in ambient air temperatures ranging from -15 to 40 °C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance It comes in a set of 3 and has a net weight of 0,146 kg.

Technical specifications
Breite 74 mm
Farbe lichtgrau
Höhe 94 mm
Länge 116 mm
Material ABS
RAL-Farbnummer 7035
Schutzart (IP) IP66
Logistics
Ursprungsland HU
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
