NSYTBS19128 | Schneider Electric

ABS enclosure, (L x W x H) 192 x 121 x 87 mm, light gray (RAL 7035), IP66, NSYTBS19128

Order No.: 02P2745
EAN: 3606480165283
MPN:
NSYTBS19128
Series: Thalassa TBS
NSYTBS19128 Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
17.8262 € *
Available: 6 pcs.
Leadtime: 1 Week **
Total Price:
17.83 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8262 €
2 pcs.
17.0289 €
4 pcs.
16.3030 €
6 pcs.
15.4224 €
*incl. VAT plus shipping costs
**Subject to prior sale

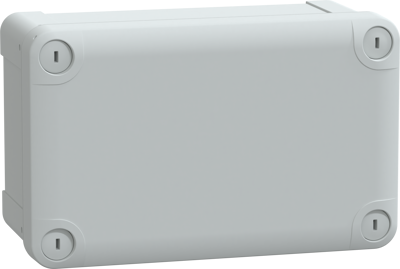

ABS enclosure, NSYTBS19128, Schneider Electric

Thalassa TBS industrial ABS box with opaque cover H20. Interior is 175 x 105 x 80 mm. Exterior is 192 x 121 x 87 mm. Wall mounted enclosure, low plain cover. Outside sealed. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4 x ), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40 °C)/(-25 to 60 °C).

Technical specifications
Breite 121 mm
Farbe lichtgrau
Höhe 87 mm
Länge 192 mm
Material ABS
RAL-Farbnummer 7035
Schutzart (IP) IP66
Logistics
Ursprungsland HU
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
