NSYTBS19128T | Schneider Electric

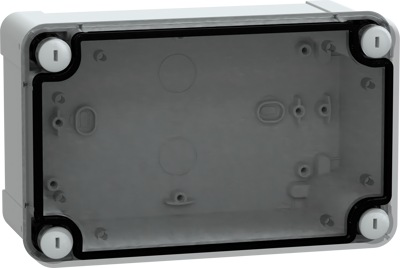

ABS enclosure, (L x W x H) 192 x 121 x 87 mm, light gray (RAL 7035), IP66, NSYTBS19128T

Order No.: 02P2746
EAN: 3606480165443
MPN:
NSYTBS19128T
Series: Thalassa TBS
NSYTBS19128T Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
22.3482 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.35 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3482 €
2 pcs.
21.3724 €
4 pcs.
20.2062 €
6 pcs.
19.1471 €
*incl. VAT plus shipping costs
**Subject to prior sale

ABS enclosure, NSYTBS19128T, Schneider Electric

Thalassa TBS industrial ABS box with, transparent cover H20. Interior is 175 x 105 x 80 mm. Exterior is 191 x 121 x 87 mm. Wall mounted enclosure, low transparent cover. Outside sealed. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4 x ), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40 °C)/(-25 to 60 °C).

Technical specifications
Breite 121 mm
Farbe lichtgrau
Höhe 87 mm
Länge 192 mm
Material ABS
RAL-Farbnummer 7035
Schutzart (IP) IP66
Logistics
Ursprungsland HU
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
