NSYTBS292412 | Schneider Electric

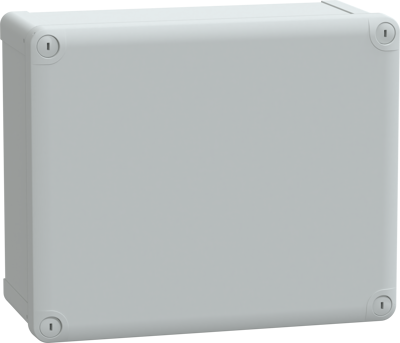

ABS enclosure, (L x W x H) 291 x 241 x 128 mm, light gray (RAL 7035), IP66, NSYTBS292412
Unit Price (€ / pc.)
38.6155 € *
Available: 0 pcs.
Leadtime: 1 Week **
ABS enclosure, NSYTBS292412, Schneider Electric
Thalassa TBS industrial ABS box with opaque cover H20. Interior is 275 x 225 x 120 mm. Exterior is 291 x 241 x 128 mm. Wall mounted enclosure, low plain cover. Outside sealed. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4 x ), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40 °C)/(-25 to 60 °C).
Technical specifications
| Breite | 241 mm | |
| Farbe | lichtgrau | |
| Höhe | 128 mm | |
| Länge | 291 mm | |
| Material | ABS | |
| RAL-Farbnummer | 7035 | |
| Schutzart (IP) | IP66 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85381000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
