VW3A4408 | Schneider Electric
EMC filter, 50 to 60 Hz, 180 A, 500 VAC, VW3A4408
Unit Price (€ / pc.)
1,729.9149 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,729.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,729.9149 €

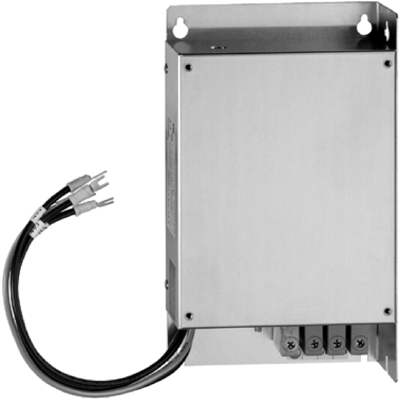

EMC input filter, VW3A4408, Schneider Electric
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 180A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2. Its protection index is IP20. It weighs 40kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
Technical specifications
| Number of phases | 3 | |
| Version | EMC filter | |
| Rated Voltage | 500 VAC | |
| max. frequency | 60 Hz | |
| max. operating temperature | 65 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -40 °C | |
| Rated current | 180 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85480090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
