ZB4BV156 | Schneider Electric
Lamp socket, BA9s, 250 V, screw connection, ZB4BV156
Unit Price (€ / pc.)
19.516 € *
Available: 0 pcs.
Leadtime: On Request **

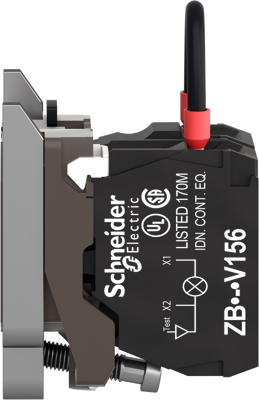

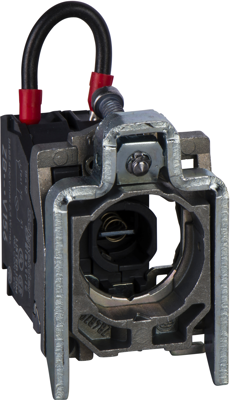

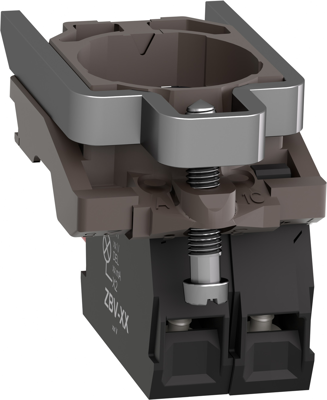

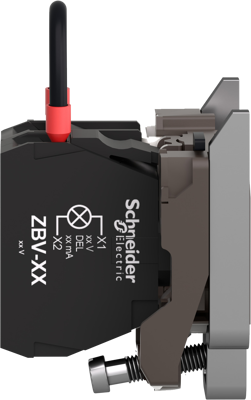

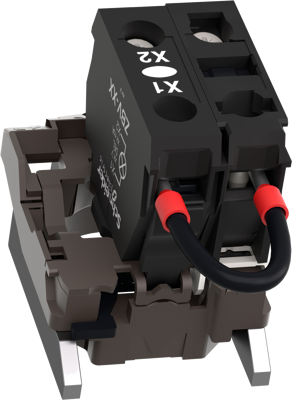

Lamp socket, ZB4BV156, Schneider Electric
This Harmony XB4, complete light body with 3-terminal “test” function operates with BA9s base fitting. It has a metal body and is compatible with Harmony XB4 pilot lights. It is supplied without bulb (incandescent, neon or LED) 2.4 W maxi, not included. It is supplied with 250V AC/DC maxi. It is easily installed and replaced on compatible pilot light via clip together assembly and connected with simple screw-clamp connections. It weighs 62g and its dimensions are, 30mm wide, 47mm high, 37mm deep. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications.
Technical specifications
| Connection | screw connection | |
| Version | lamp socket | |
| Type of mounting | front mounting | |
| Socket version | BA9s | |
| Voltage | 250 V |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85319000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
