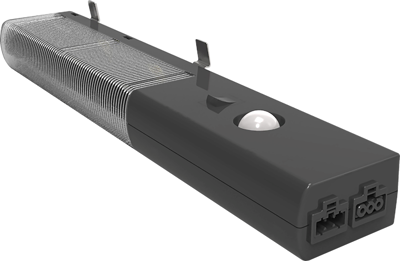

Multi-fixing LED lamp, NSYLAMLDD, Schneider Electric
This Multi-fixing LED lamp without socket, with built-in switch and presence detector have a power consumption of 10 W. The rated operational voltage is 120/230 V AC 50/60 Hz. The luminosity of the light is 640 lm, the light temperature is 4000 K and the LED service life is 25000 hours. The casing is made of UL94 V-0 plastic, the lamp have an IP20 resistance to water and dust and is class II electrical insulated.
The dimensions of the lamp are (L) 372 mm x (W) 40 mm x (H) 63 mm. It can be fixed on brackets, DIN rails or metal parts with magnetic fixing, screws fixing or clip-in fixing. The fixing elements are delivered with the lamp. The electrical connection can be done by cable quick connector 3 m or cable quick connector 1 m, that are not supplied. The storage temperature is -10 °C to 60 °C and the operating temperature is -16 °C to 65 °C.
