XPSUDN13AC | Schneider Electric
Safety relays, 3 Form A (N/O) + 1 Form B (N/C), 24 V (DC), XPSUDN13AC
Unit Price (€ / pc.)
244.6164 € *
Available: 0 pcs.
Leadtime: On Request **

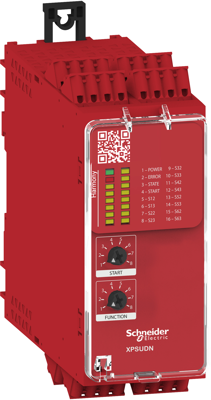

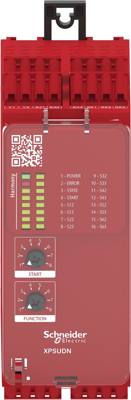

Safety module, XPSUDN13AC, SCHNEIDER

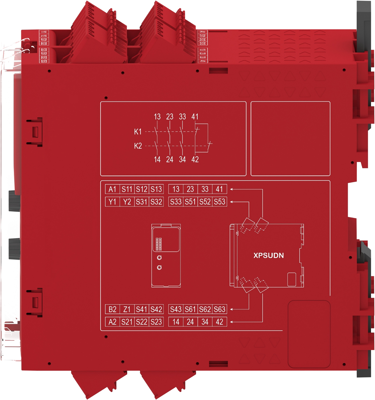

This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch or safety light curtain. The safety relay is powered with 24V AC/DC, and equipped with a spring removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 6 safety inputs, 7 ON/OFF configurable pulsed outputs, 3 NO, 1 NC safety outputs, and 1 solid-state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508.
Technical specifications

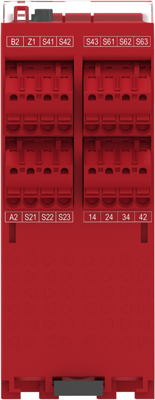

| Connection | spring-clamp connection | |
| Contact type | 3 Form A (N/O) + 1 Form B (N/C) | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
