LMC058LF424 | Schneider Electric
Compact base - 42 + 4 I/O - 24 V DC supply - 2 slots for PCI
Unit Price (€ / pc.)
2,241.0199 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,241.02 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,241.0199 €

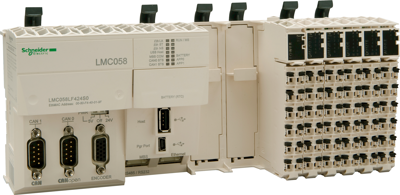

Motion controller, LMC058LF424, Schneider Electric
This product is part of the Modicon LMC058 range, an offer of motion controllers for coordinated, synchronised and interpolated motion control. This motion controller provides 42 discrete + 4 analogue I/Os and 3V CR2477M lithium battery. It is a compact base with a rated supply voltage of 24V DC and a rated current of 0.04 A for embedded expert modules power, 10 A for I/O power segment, 0.3 A for main supply. It provides 26 totally discrete inputs, 16 totally discrete outputs, and 4 totally analogue inputs. It supports 128 MB flash and 64 MB RAM memory. It is an IP20 rated product. Its dimensions are 237.5 mm (Width) x 85 mm (Depth) x 99 mm (Height). It weighs 0.77 kg.
Technical specifications
| Number of I/Os | 4 | |
| Version | motion controller | |
| Width | 237.5 mm | |
| Height | 99 mm | |
| Assembly | DIN rail | |
| Depth | 85 mm |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85371091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
