GV2L20 | Schneider Electric

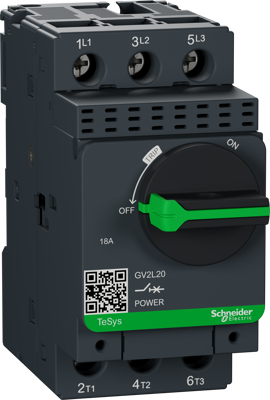

Motor protection switch, 3 pole, 8 kW, 18 A, screw connection, GV2L20

Order No.: 02P6701
EAN: 4099889165197
MPN:
GV2L20
Series: TeSys GV2
Schneider Electric
GV2L20 Schneider Electric Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
86.3345 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
86.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
86.3345 €

Motor circuit breaker, GV2L20, Schneider Electric

TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD21 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Connection screw connection
Version motor protection switch
rated voltage (AC) 690 V
Actuator rotary knob
Assembly DIN rail
Engine power 8 kW
Rated current 18 A
Network frequency 50/60 Hz
Pin number 3 pole
Degree of protection (IP) IP20
Logistics
Country of origin FR
Customs tariff number 85362010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
