GV2LE06 | Schneider Electric
Motor protection switch, 3 pole, 1 kW, 1.6 A, screw connection, GV2LE06
Unit Price (€ / pc.)
61.2493 € *
Available: 0 pcs.
Leadtime: On Request **

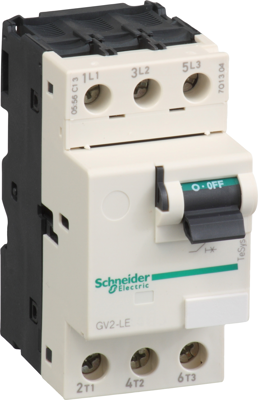

Motor circuit breaker, GV2LE06, Schneider Electric
TeSys GV motor circuit breaker, 3 poles (3P), 1.6A/690V, for 3-phase motor applications 0.55kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD06 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | motor protection switch | |
| rated voltage (AC) | 690 V | |
| Actuator | toggle lever | |
| Assembly | DIN rail | |
| Engine power | 1 kW | |
| Rated current | 1.6 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
