GV2ME03 | Schneider Electric
Motor protection switch, 3 pole, 250 to 400 mA, 0.09 kW, 0.4 A, screw connection, GV2ME03
Unit Price (€ / pc.)
61.4992 € *
Available: 0 pcs.
Leadtime: On Request **

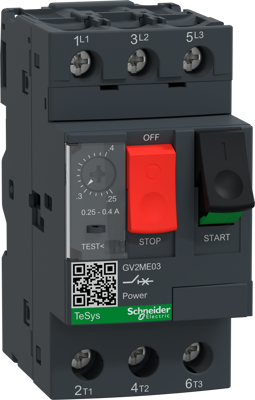

Motor circuit breaker, GV2ME03, Schneider Electric
TeSys GV motor circuit breaker, 3 poles (3P), 0.4A/690V, for 3-phase motor applications 0.09kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.25-0.4A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Motorschutzschalter | |
| Auslösung | 250 bis 400 mA | |
| Bemessungsspannung (AC) | 690 V | |
| Betätiger | Drucktaster | |
| Montage | DIN-Schiene | |
| Motorleistung | 0,09 kW | |
| Nennstrom | 0.4 A | |
| Netzwerkfrequenz | 50/60 Hz | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85362010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
| Nachhaltig | Yes |
