GV2ME32 | Schneider Electric
Motor protection switch, 3 pole, 24 to 32 A, 15 kW, 32 A, screw connection, GV2ME32
Unit Price (€ / pc.)
141.5148 € *
Available: 0 pcs.
Leadtime: On Request **

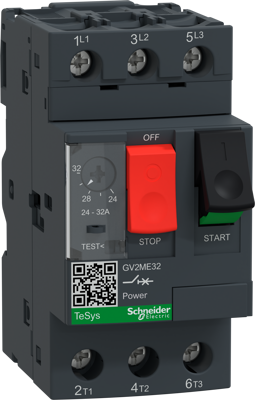

Motor circuit breaker, GV2ME32, Schneider Electric
TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a thermal-magnetic protection with a thermal setting range 24-32A, magnetic tripping at 13xIn, high breaking capacity Icu 10kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | motor protection switch | |
| Release | 24 to 32 A | |
| rated voltage (AC) | 690 V | |
| Actuator | pushbutton | |
| Assembly | DIN rail | |
| Engine power | 15 kW | |
| Rated current | 32 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
