GV2P10 | Schneider Electric

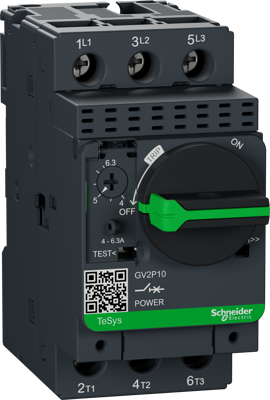

Motor protection switch, 3 pole, 4 to 6.3 A, 2 kW, 6.3 A, screw connection, GV2P10
Unit Price (€ / pc.)
76.3980 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
76.40 € *
Price list
Quantity
Price per unit*
1 pcs.
76.3980 €
5 pcs.
74.3274 €
*incl. VAT plus shipping costs
**Subject to prior sale
Motor protection switch, GV2P10, Schneider Electric
TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | motor protection switch | |
| Release | 4 to 6.3 A | |
| rated voltage (AC) | 690 V | |
| Actuator | rotary knob | |
| Assembly | DIN rail | |
| Engine power | 2 kW | |
| Rated current | 6.3 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
