GV2RT05 | Schneider Electric

Transformer circuit breaker, 3 pole, 630 mA to 1 A, 1 kW, 1 A, screw connection, GV2RT05

Order No.: 02P6851
EAN: 4099889166255
MPN:
GV2RT05
Series: TeSys GV2
Schneider Electric

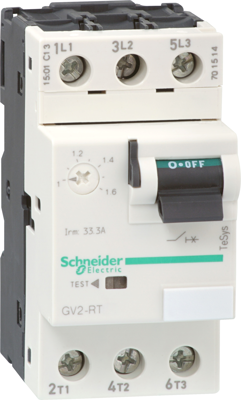

GV2RT05 Schneider Electric Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
72.8399 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
72.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
72.8399 €

Transformer circuit breaker, GV2RT05, Schneider Electric

TeSys GV motor circuit breaker, 3 poles (3P), 1A/690V, for high starting current peak motor applications 0.25-0.37kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.63-1A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Connection screw connection
Version Transformer circuit breaker
Release 630 mA to 1 A
rated voltage (AC) 690 V
Actuator toggle lever
Assembly DIN rail
Engine power 1 kW
Rated current 1 A
Network frequency 50/60 Hz
Pin number 3 pole
Degree of protection (IP) IP20
Logistics
Country of origin FR
Customs tariff number 85362010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
