GV2RT10 | Schneider Electric

Transformer circuit breaker, 3 pole, 4 to 6.3 A, 2 kW, 6.3 A, screw connection, GV2RT10

Order No.: 02P6859
EAN: 4099889166293
MPN:
GV2RT10
Series: TeSys GV2

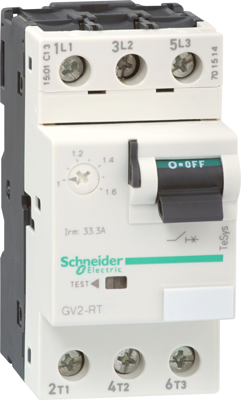

GV2RT10 Schneider Electric Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
72.8399 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
72.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
72.8399 €

Transformer circuit breaker, GV2RT10, Schneider Electric

TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for high starting current peak motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Anschluss Schraubanschluss
Ausführung Transformatorschutzschalter
Auslösung 4 bis 6,3 A
Bemessungsspannung (AC) 690 V
Betätiger Kipphebel
Montage DIN-Schiene
Motorleistung 2 kW
Nennstrom 6.3 A
Netzwerkfrequenz 50/60 Hz
Polzahl 3-polig
Schutzart (IP) IP20
Logistics
Ursprungsland FR
Zolltarifnummer 85362010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Nachhaltig Yes
