GV2RT21 | Schneider Electric

Transformer circuit breaker, 3 pole, 17 to 23 A, 11 kW, 23 A, screw connection, GV2RT21

Order No.: 02P6868
EAN: 4099889166347
MPN:
GV2RT21
Series: TeSys GV2
GV2RT21 Schneider Electric Motor Protection Switches

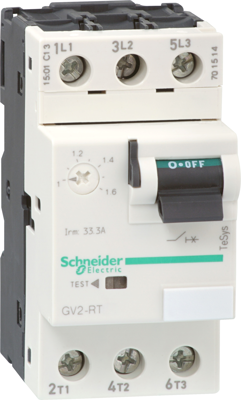

Image may differ
Unit Price (€ / pc.)
99.3293 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
99.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
99.3293 €

Transformer circuit breaker, GV2RT21, Schneider Electric

TeSys GV motor circuit breaker, 3 poles (3P), 23A/690V, for high starting current peak motor applications 9-11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-23A, a magnetic tripping level at 17xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Anschluss Schraubanschluss
Ausführung Transformatorschutzschalter
Auslösung 17 bis 23 A
Bemessungsspannung (AC) 690 V
Betätiger Kipphebel
Montage DIN-Schiene
Motorleistung 11 kW
Nennstrom 23 A
Netzwerkfrequenz 50/60 Hz
Polzahl 3-polig
Schutzart (IP) IP20
Logistics
Ursprungsland FR
Zolltarifnummer 85362010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Nachhaltig Yes
