SH31003P02A2300 | Schneider Electric
Servo motor, 480 V (AC), 2400 W, 28.3 A, 5.1 Nm, 6000 1/min, SH31003P02A2300
Order No.: 04P6504
EAN: 4099891525316
MPN:
SH31003P02A2300
Unit Price (€ / pc.)
3,048.3397 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3,048.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,048.3397 €

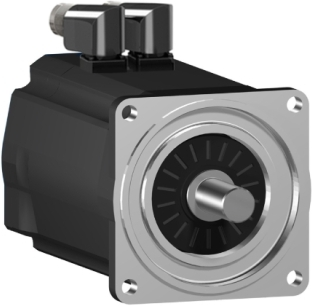

Servo motor, SH31003P02A2300, Schneider Electric
Lexium SH3 servomotors is the perfect answer to high demands on dynamics and precision. It offers a solution for most applications.
Technical specifications
| Version | servo motor | |
| Torque | 5.1 Nm | |
| speed | 6000 1/min | |
| Power | 2400 W | |
| max. operating temperature | 55 °C | |
| min. operating temperature | -20 °C | |
| Rated voltage (AC) | 480 V | |
| Rated current | 28.3 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85011093 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
