NSYCVF560M230DG | Schneider Electric

Filter fan, 230 V, 316 x 336 x 161 mm, 560 m³/h, 59 dB, ball bearing, Schneider Electric NSYCVF560M230DG

Order No.: 02P0483
EAN: 3606481369796
MPN:
NSYCVF560M230DG
Series: Climasys CV
NSYCVF560M230DG Schneider Electric Panel-Mount Fans

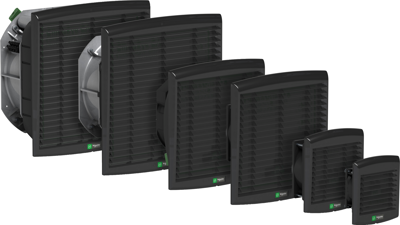

Image may differ

As a private customer, you can buy this item as soon as we have it back in stock.

Fan, NSYCVF560M230DG, Schneider Electric

This product is a smart fan that is designed to provide reliable and efficient cooling. It is made of injected thermoplastic (PC) and motor support (ASA PC) and is available in smoked black (RAL 9005) color. The fan has a ball bearing type and a maximum pressure of 140 Pa. It has a power range of 68 W 50 Hz and 85 W 60 Hz, and a free flow rate of 562 m3/h at 50 Hz and 586 m3/h at 60 Hz. It can be used in ambient air temperatures ranging from -15 to 60°C. It has a terminal block and comes with a filter, an external protective transparent smoked grille, a fan sensor ready to be mounted, and a cable gland. It has an IP54 degree of protection and a noise level of 59-59 dB. The cut-out dimensions of the fan are 291 x 291 mm.

Features

  • Durable construction made of injected thermoplastic (PC) and motor support (ASA PC)
  • Reliable ball bearing type with a maximum pressure of 140 Pa
  • Comes with a fan sensor ready to be mounted
  • External protective transparent smoked grille ensures efficient airflow
Technical specifications
Breite 316 mm
Höhe 336 mm
Lagerart Kugellager
Nennspannung 230 V
Schalldruckpegel 59 db
Schutzart (IP) IP54
Tiefe 161 mm
Volumenstrom 560 m³/h
Logistics
Ursprungsland ES
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
