TM3SAFL5RG | Schneider Electric
Modicon TM3 Safety module - 2 Function, Cat 3 PL d/SIL CL2 (spring) 24Vdc
Unit Price (€ / pc.)
280.126 € *
Available: 0 pcs.
Leadtime: On Request **

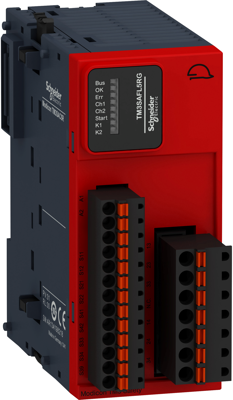

Safety module, TM3SAFL5RG, Schneider Electric
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The safety module provides 3 normally opened contacts and unlimited synchronisation time between inputs. It is a safety module with a rated supply voltage of 24V DC, an external supply current consumption of 100mA at 24V DC on power supply and a power consumption 0.2W at 5V DC, 3.6W at 24V DC. The main functions of this module are emergency stop, movable guard, multiple emergency stop, proximity sensor and electro-sensitive protection equipment (ESPE) monitoring. It is furnished with spring terminal for electrical connection.
Technical specifications
| Connection | spring-clamp connection | |
| Number of outputs | 3 | |
| Version | 2 function safety module | |
| Width | 43.7 mm | |
| Height | 94 mm | |
| Assembly | DIN rail | |
| Control Voltage | 24 VDC | |
| Depth | 73 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
