Surface-mounted german schuko-style socket outlet, blue, 16 A/250 V, Germany, IP54, PKS52B
Unit Price (€ / pc.)
9.9127 € *
Available: 0 pcs.
Leadtime: On Request **

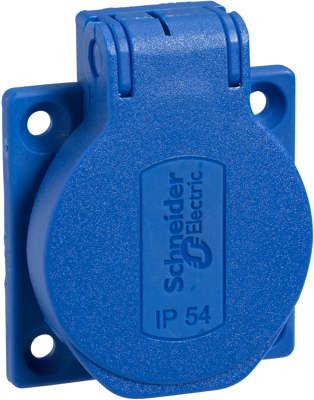

PratiKa socket, PKS52B, Schneider Electric
This Pratika industrial socket with captive screws connection is straight panel mounted. It has 2P+E poles, rated current is 10A to 16A and the operating voltage is 250VAC. The dimensions of the base plate are (W) 65mm x (H) 85mm. The degree of protection is IP54 and IK09. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The color of the socket is blue to easily identify the operationg voltage. The frequency is 50Hz or 60Hz.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Anbau-Schuko-Steckdose | |
| Farbe | blau | |
| Landeskennung | Deutschland | |
| Nennleistung | 16 A/250 V | |
| Schutzart (IP) | IP54 |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
