PKS62G | Schneider Electric
Surface-mounted german schuko-style socket outlet, gray, 16 A/250 V, Germany, IP54, PKS62G
Unit Price (€ / pc.)
10.8052 € *
Available: 0 pcs.
Leadtime: On Request **

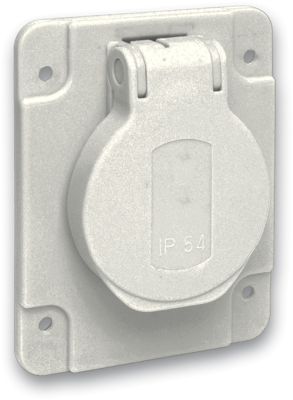

PratiKa socket, PKS62G, Schneider Electric
This Pratika industrial socket with captive screws connection is straight panel mounted. It has 2P+E poles, rated current is 10A to 16A and the operating voltage is 250VAC. The dimensions of the base plate are (W) 65mm x (H) 85mm. The degree of protection is IP54 and IK09. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The color of the socket is light grey (RAL 7035). The frequency is 50Hz or 60Hz.
Technical specifications
| Connection | screw connection | |
| Version | Surface-mounted german schuko-style socket outlet | |
| Colour | gray | |
| Country code | Germany | |
| Nominal power | 16 A/250 V | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
