ATS01N109FT | Schneider Electric
Soft starter, 1 phase, 4 kW, 9 A, 480 V (AC), ATS01N109FT
Unit Price (€ / pc.)
182.2842 € *
Available: 2 pcs.
Leadtime: 1 Week **

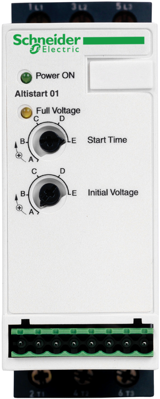

Soft starter, ATS01N109FT, Schneider Electric
The alternative to the star-delta starter! Compact and inexpensive electronic starting for standard applications. Soft starter for asynchronous motors. Rated current 9 A, 230V power 1.5 kW, 400V power 3 kW. The soft starter enables the gentle starting of three-phase asynchronous motors and prevents current peaks in the start-up phase as well as mechanical load surges. Typical applications: conveyor belts, conveyors, pumps, fans, compressors, etc. Extremely simple commissioning, integrated bypass, optional signal outputs or control voltage internally or externally, boost function for high breakaway torque.
Features
- Provides smooth starting for your pumps, fans, compressors and machinery
- Avoid mechanical stresses and extend their service life
- Progressive start limits the starting and stopping noise of motors
- Reduce hearing discomfort for operators on the workfloor
Technical specifications
| Number of phases | 1 | |
| Version | Soft starter | |
| Power | 4 kW | |
| max. operating temperature | 40 °C | |
| min. operating temperature | -10 °C | |
| Rated voltage (AC) | 480 V | |
| Rated current | 9 A | |
| Standard number | EN/IEC 60947-4-2 | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
