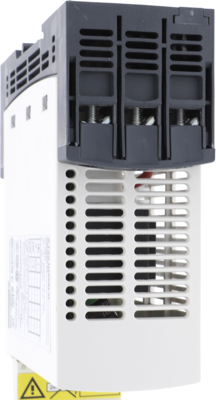

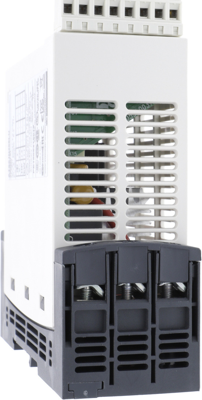

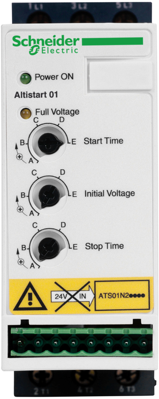

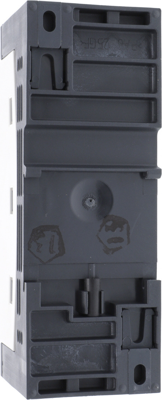

Soft starter, ATS01N212RT, Schneider Electric
This Altistart 01 soft starter is mounted on a DIN rail and can feed 3-phase asynchronous motors with a power of up to 12A. This Altistart 01 can be used for a motor rated power up to 3kW or 3hp for 3 phases (200V to 240V AC). This soft starter mounted on a DIN rail allows the soft start of simple machines such as conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machines. It is 45mm wide, making it one of the smallest soft starters on the market; it can be installed almost anywhere. It has an integrated bypass that reduces noise and heat dissipation. Easy setup with only 2 settings: can be configured even by non-professionals. It ensures a soft start of your machines, avoids mechanical stress and extends their lifespan.
Features
- Provides smooth starting for your pumps, fans, compressors and machinery
- Avoid mechanical stresses and extend their service life
- Progressive start limits the starting and stopping noise of motors
- Reduce hearing discomfort for operators on the workfloor
