ATS480C21Y | Schneider Electric
Soft starter, 3 phase, 200 kW, 210 A, 690 V (AC), ATS480C21Y
Unit Price (€ / pc.)
3,124.8805 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3,124.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,124.8805 €

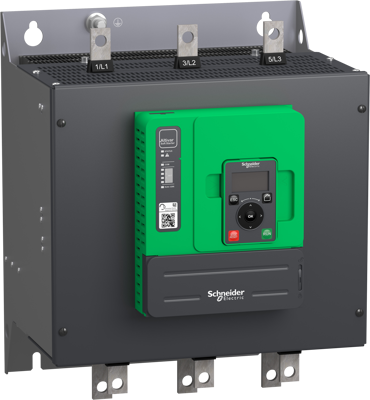

Soft starter, ATS480C21Y, Schneider Electric
Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 210A in normal duty, it supplies motor from 55kW to 200kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current.
Features
- Maximize application availability through reinforced robustness and flexibility
- Better protection of your assets with embedded cybersecurity best practices
- Extend the service lifetime of ATS48 equipment and preserve your investment
Technical specifications
| Number of phases | 3 | |
| Version | Soft starter | |
| Power | 200 kW | |
| max. operating temperature | 40 °C | |
| min. operating temperature | -15 °C | |
| Rated voltage (AC) | 690 V | |
| Rated current | 210 A | |
| Standard number | IEC 60947-4-2 | |
| Degree of protection (IP) | IP00 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
