13431 | Schneider Electric

Small distributor, 1x12 HP, (H x W x D) 280 x 340 x 160 mm, IP65/IK09, polymer, light gray, 13431

Order No.: 06P7952
EAN: 3303430134312
MPN:
13431

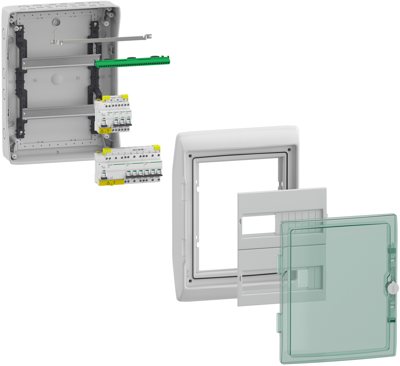

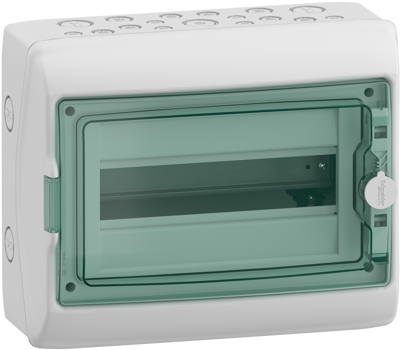

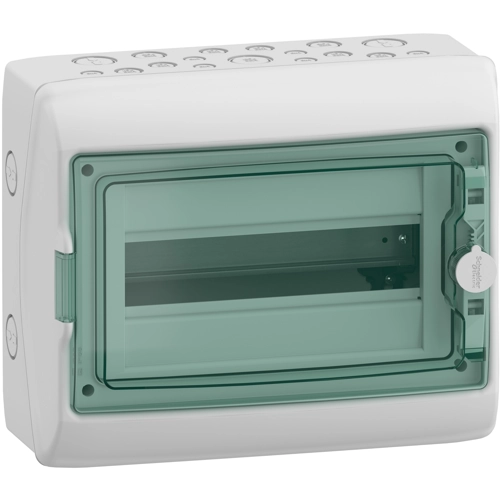

13431 Schneider Electric Switch Cabinets, server cabinets Image 1

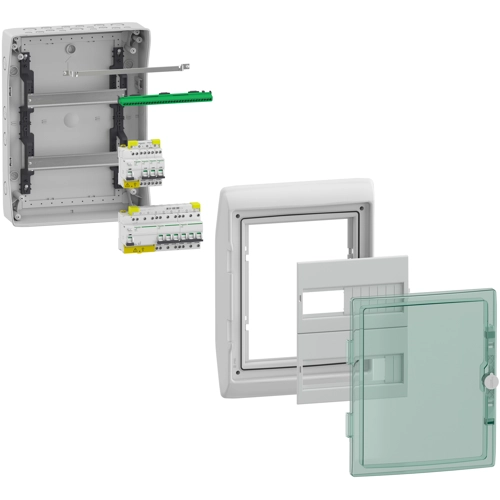

13431 Schneider Electric Switch Cabinets, server cabinets Image 2
Image may differ
Unit Price (€ / pc.)
80.5154 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
80.52 € *
Price list
Quantity
Price per unit*
1 pcs.
80.5154 €
3 pcs.
77.2905 €
5 pcs.
74.3155 €
*incl. VAT plus shipping costs
**Subject to prior sale

Mini distribution board, 13431, Schneider Electric

This Kaedra weatherproof versatile enclosure up to 12 modules in 1 row comes with reversible transparent cover. This enclosure is dedicated to indoor or outdoor waterproof installation. The dimensions of the box are (W) 340 mm x (H) 280 mm x (D) 160 mm. The rated current is 63 A, according to EN 60439-1 the complete insulation is Class 2. The degree of protection is IP65 and IK09. The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 60°C. Empty, this enclosure is compliant with IEC 60670. Equipped switchboards, this enclosure is compliant with IEC 60493-3.

Technical specifications
Ausführung 1x12 TE
Breite 340 mm
Farbe lichtgrau
Höhe 280 mm
Material Polymer
Produkt-Art Kleinverteiler
Schutzart (IP) IP65/IK09
Tiefe 160 mm
Logistics
Ursprungsland IT
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
