13436 | Schneider Electric
Small distributor, 3x18 HP, (H x W x D) 610 x 448 x 160 mm, IP65/IK09, polymer, light gray, 13436
Unit Price (€ / pc.)
238.8925 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
238.89 € *
Price list
Quantity
Price per unit*
1 pcs.
238.8925 €
2 pcs.
233.0615 €
*incl. VAT plus shipping costs
**Subject to prior sale

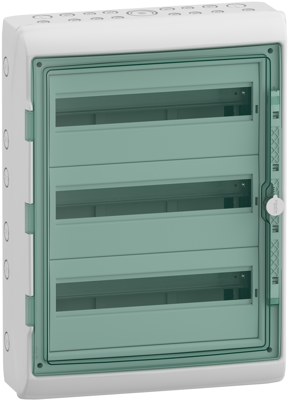

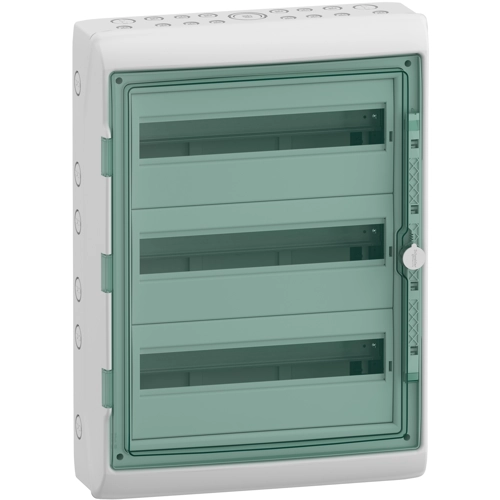

Mini distribution board, 13436, Schneider Electric
This Kaedra weatherproof versatile enclosure up to 18 modules in 3 rows comes with reversible transparent cover. The total number of modules is 54. The dimensions of the box are (W) 448 mm x (H) 610 mm x (D) 160 mm. The rated current is 125 A, according to EN 60439-1 the complete insulation is Class 2. The degree of protection is IP65 and IK09. The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 60°C. Empty, this enclosure is compliant with IEC 60670. Equipped switchboards, this enclosure is compliant with IEC 60493-3. This enclosure is dedicated to indoor or outdoor waterproof installation.
Technical specifications
| Product type | Kleinverteiler | |
| Version | 3x18 TE | |
| Height | 610 mm | |
| Width | 448 mm | |
| Depth | 160 mm | |
| Material | Polymer | |
| Colour | lichtgrau | |
| Degree of protection (IP) | IP65/IK09 |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
