Distribution board, 13988, Schneider Electric

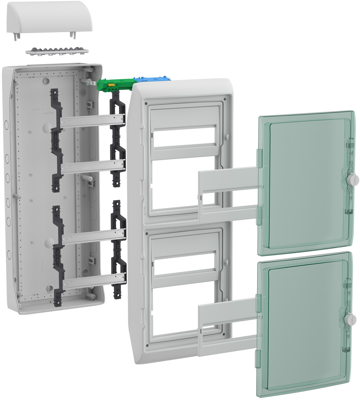

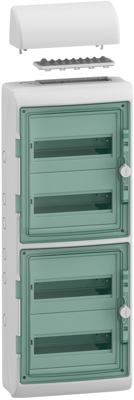

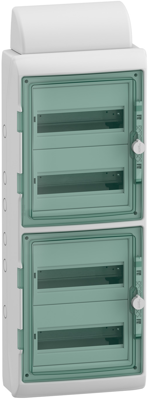

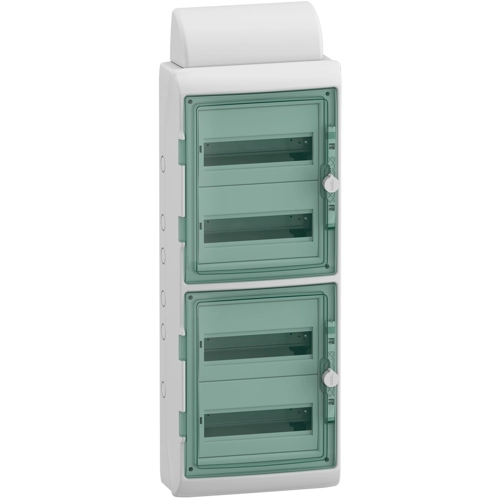

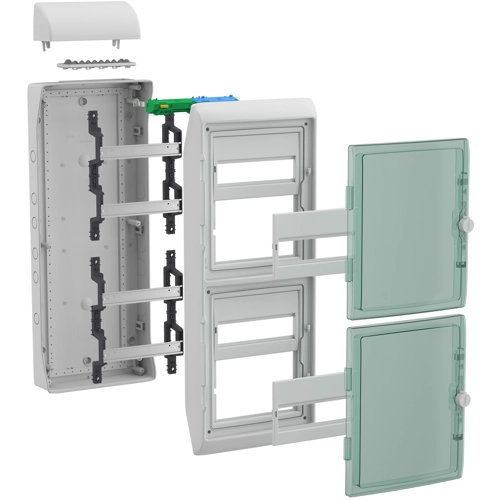

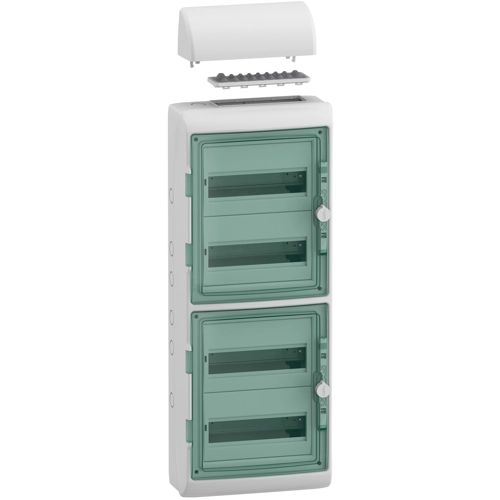

This distributor is supplied with two transparent doors and, if required, with a cable cover. Suitable for both indoor and outdoor installations. Space for 48 module-wide DIN devices. Cables can be fed in at the top/bottom/side via a cable entry flange and also via a 2-component entry. New plug-in terminals - 1 earthing and neutral conductor terminal (3 x 25 mm² + 11 x 4 mm²) - are included. Dimensions incl. cable cover (W) 340 mm x (H) 939 mm x (D) 164 mm. Rated current up to 63 A. The insulation class is class 2 and the degree of protection is IP65 in accordance with IEC 60529. The distribution box is light gray (RAL 7035) and has a green transparent door. The degree of impact resistance is IK09 according to EN 50102 and the operating temperature is between -25°C to 60°C. This distribution board complies with IEC 60670, IEC 61439-3 and the EN 50262 standard. The overvoltage protection class is II. This distribution board is made of self-extinguishing plastic. The DIN rail can be flexibly mounted up/down/behind. A cover and terminal block holder are also supplied.
