NSYPLA10124TG | Schneider Electric

Control cabinet, (H x W x D) 1000 x 1250 x 420 mm, IP65, polyester, light gray, NSYPLA10124TG

Order No.: 02P1664
EAN: 3606480774423
MPN:
NSYPLA10124TG
Series: Thalassa PLA
Schneider Electric
NSYPLA10124TG Schneider Electric Switch Cabinets, server cabinets
Image may differ
Unit Price (€ / pc.)
1,484.0252 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,484.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,484.0252 €

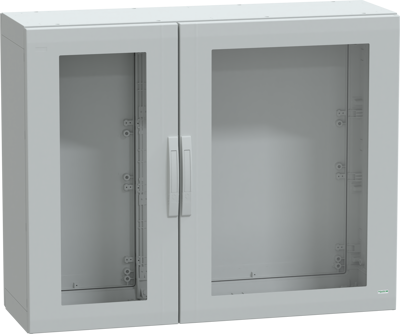

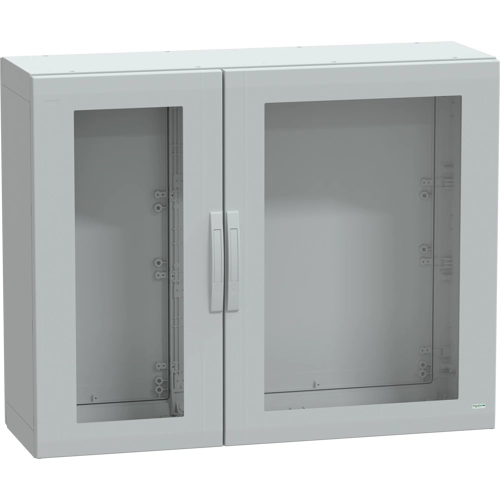

Floor standing polyester enclosure, NSYPLA10124TG, Schneider Electric

This PLA is a multi-purpose, floor-standing unit that is suitable for various applications. It has a nominal height of 1000 mm, a width of 1250 mm, and a depth of 420 mm. The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments. It is available in grey (RAL 7035) color and consists of two side parts, two transparent front doors, and two rear panels. The doors can open up to 120° from either the right or left side, and features a four-point lock with a 5 mm double-bar insert.

The doors and rear panels are removable for easy maintenance, the enclosure offers robust protection against various hazards, including fire, impacts, dust, and water. It can withstand fire up to 960 °C in accordance with the IEC 62208 standard, and has an IK08 rating (IEC 62262) for resistance to impacts it is rated IP65 (IEC 60529), offering complete protection against dust and water additionally. The enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is DNV Marine, UL/cUL listed, and Veritas certified, and can be stored in ambient air temperatures ranging from -35 °C to 90 °C without affecting its performance.

Technical specifications
Version control cabinet
Width 1250 mm
Colour light gray
Height 1000 mm
Material polyester
Degree of protection (IP) IP65
Depth 420 mm
Logistics
Country of origin ES
Customs tariff number 85381000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
