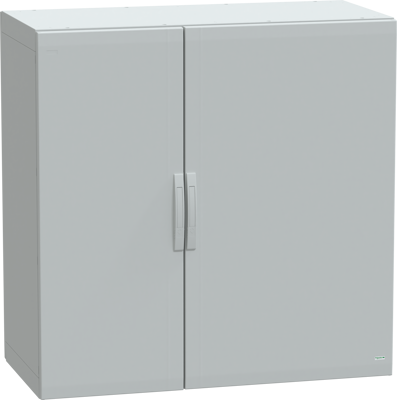

Floor standing polyester enclosure, NSYPLA12126G, Schneider Electric
This PLA is a multi-purpose, floor-standing unit that is suitable for various applications. It is 1250 mm in height, 1250 mm in width, and 620 mm in depth, and is made from polyester reinforced with fiberglass, giving it durability and resistance to harsh environments. The enclosure is available in grey (RAL 7035) and consists of two side parts, two plain front doors, and two rear panels. The door can be opened up to 120°, from both the right and left sides, and features a four-point lock with a 5 mm double-bar insert.
The doors and rear panels are also removable for maintenance purposes, the enclosure offers robust protection against various hazards, including fire, impacts, dust, and water. It can withstand fire up to 960 °C in accordance with the IEC 62208 standard It has an IK10 rating (IEC 62262) for high impact resistance and an IP65 rating (IEC 60529) for complete dust and water protection additionally. The enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions. It is UL/cUL listed, Veritas certified, and DNV Marine approved, and can be stored in ambient air temperatures ranging from -35 °C to 90 °C without affecting its performance.
