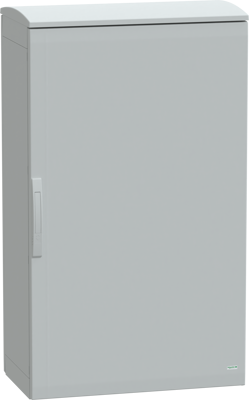

Floor standing polyester enclosure, NSYPLAT1274G, Schneider Electric
This PLAT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications. It measures 1250 mm in height, 750 mm in width, and 420 mm in depth, also is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments. The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one canopy. The door can be opened from either the right or left side up to 120°, and is fitted with a four-point lock and a handle with a 5 mm double-bar insert.
The door, rear panel, and canopy can all be removed for maintenance purposes. The enclosure is designed to provide robust protection against various hazards, including fire, impact, dust, and water. It can withstand fire up to 960 °C in accordance with the IEC 62208 standard. It also has an IK10 rating (IEC 62262), indicating high resistance to impacts it is rated IP44 (IEC 60529) with a ventilated canopy, providing high protection against dust and water additionally. The enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions.
