NSYPLAZT1053G | Schneider Electric

Control cabinet, (H x W x D) 1000 x 500 x 320 mm, IP44, polyester, light gray, NSYPLAZT1053G

Order No.: 02P1903
EAN: 3606480775994
MPN:
NSYPLAZT1053G
Series: Thalassa PLA
NSYPLAZT1053G Schneider Electric Switch Cabinets, server cabinets
Image may differ
Unit Price (€ / pc.)
757.6968 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
757.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
757.6968 €

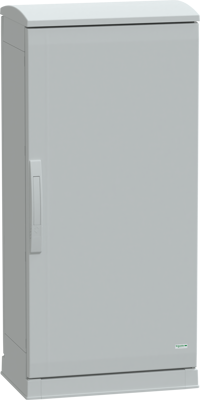

Floor standing polyester enclosure, NSYPLAZT1053G, Schneider Electric

This PLAZT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications. The enclosure has a nominal height of 1000 mm, width of 500 mm, and depth of 320 mm, also is made of polyester reinforced with fiberglass for durability and resistance to harsh environments. It is available in grey (RAL 7035) and includes two side parts, one plain front door, one rear panel, one canopy, and one plinth. The reversible door can be opened up to 180° from either the right or left side, and is secured with a four-point lock and 5 mm double-bar insert handle.

The door, rear panel, and canopy can be removed for maintenance purposes. The enclosure offers robust protection against fire, impacts, dust, and water. It can withstand fire up to 960 °C, in accordance with IEC 62208, and has an IK10 rating (IEC 62262) for high impact resistance it is rated IP44 (IEC 60529) for protection against dust and water, and has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions.

Technical specifications
Breite 500 mm
Farbe lichtgrau
Höhe 1000 mm
Material Polyester
Produkt-Art Schaltschrank
Schutzart (IP) IP44
Tiefe 320 mm
Logistics
Ursprungsland ES
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
