NSYPLM32PG | Schneider Electric

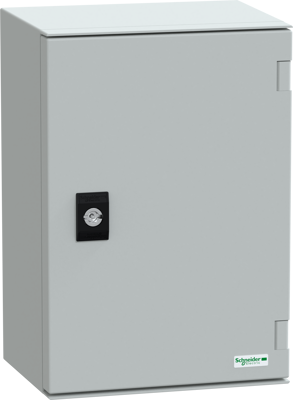

Control cabinet, (H x W x D) 310 x 215 x 160 mm, IP66, ABS/PC, light gray, NSYPLM32PG

Order No.: 02P1999
EAN: 3606480776496
MPN:
NSYPLM32PG
Series: Thalassa PLM
Schneider Electric
NSYPLM32PG Schneider Electric Switch Cabinets, server cabinets
Image may differ
Unit Price (€ / pc.)
86.6320 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
86.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
86.6320 €

Wall mounted polyester enclosure, NSYPLM32PG, Schneider Electric

This PLM is a wall-mounted enclosure from the Thalassa range that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively it is made of ABS + PC, which offers durability and resistance to industrial and outdoor environments. The enclosure comes in a grey (RAL 7035) color, the enclosure consists of one body, one door, one lock, and one mounting plate. The door is plain, allowing a discreet look.

The door can be opened from the front and has a 3 mm double-bar lock The mounting plate is plain steel. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80 °C without affecting its performance. The door and mounting plate are removable by hinges and fixing elements, respectively. The enclosure also offers fire resistance of up to 960 °C (IEC 62208).

Technical specifications
Version wall enclosure
Width 215 mm
Colour light gray
Height 310 mm
Material ABS/PC
Degree of protection (IP) IP66
Depth 160 mm
Logistics
Country of origin ES
Customs tariff number 85381000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
