Wall mounted polyester enclosure, NSYPLM64BG, Schneider Electric

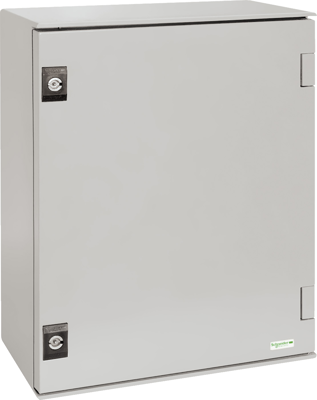

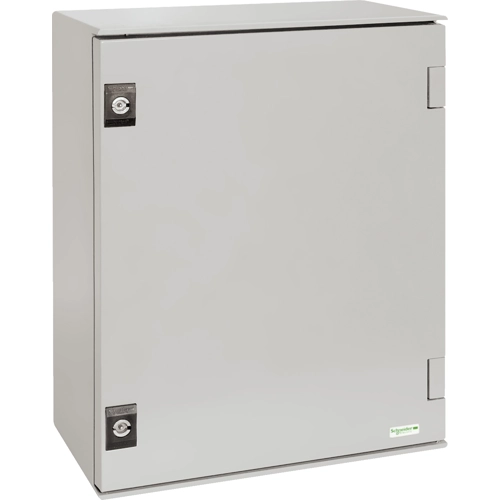

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 647 mm, 436 mm, and 250 mm, respectively it is made of polyester reinforced with fibreglass for ma x imum strength and durability. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, one mounting plate, and two locks. The door is plain, and it can be opened from the front with two 3 mm double-bar locks.
The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The door is removable from the enclosure by hinges, and the mounting plate is removable by a fixing element The enclosure also has a 960 °C fire resistance conforming to IEC 62208.
