NSYPLM75VG | Schneider Electric

Wall enclosure, (H x W x D) 747 x 536 x 300 mm, IP66, polyester, light gray, NSYPLM75VG

Order No.: 02P2030
EAN: 3606480776748
MPN:
NSYPLM75VG
Series: Thalassa PLM
NSYPLM75VG Schneider Electric Switch Cabinets, server cabinets
Image may differ
Unit Price (€ / pc.)
317.3135 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
317.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
317.3135 €

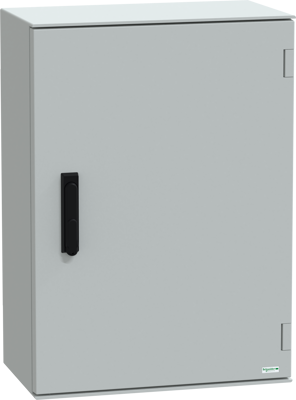

Wall mounted polyester enclosure, NSYPLM75VG, Schneider Electric

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 747 mm, 536 mm, and 300 mm, respectively it is made of polyester reinforced with fibreglass, which provides durability and resistance to industrial and outdoor environments. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, and one handle lock.

The door is plain and can be opened from the front with a 3 points lock and handle with 1242E key lock. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance.

Technical specifications
Breite 536 mm
Farbe lichtgrau
Höhe 747 mm
Material Polyester
Produkt-Art Wandgehäuse
Schutzart (IP) IP66
Tiefe 300 mm
Logistics
Ursprungsland ES
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
