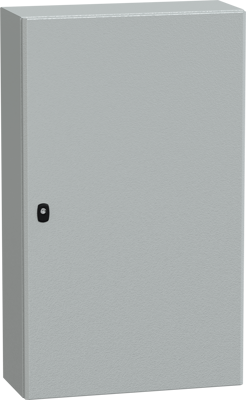

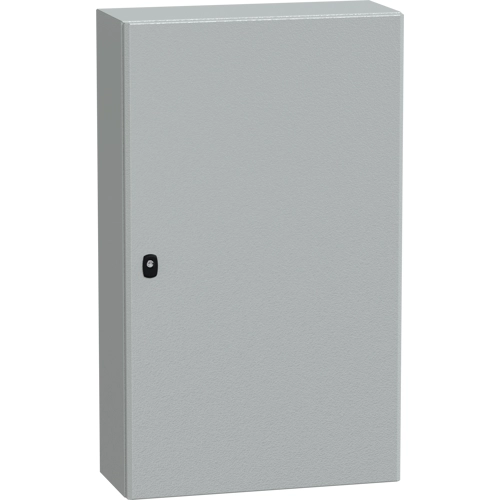

Wall mounted steel enclosure, NSYS3D10625P, Schneider Electric
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It is UL, BV, DNV, GL, LR and cUL certified and has a NEMA 4 x /13 rating. The enclosure has a nominal height, width and depth of 1000 mm, 600 mm and 250 mm, respectively It is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, one cable gland plate, one plain door with a lock and one mounting plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert, the door, the cable gland plate and the mounting plate can be removed for maintenance purposes, the net weight of the enclosure is 38 kg. It has a high impact resistance with an IK10 rating (IEC62262) and a high resistance to dust and water with an IP66 rating (IEC60529). The enclosure has a gutter-shaped front rail double sheet thickness and a single piece body Accessibility for operation is from the front.
