NSYS3D10840 | Schneider Electric

Wall cabinet, (H x W x D) 1000 x 800 x 400 mm, IP66, steel, light gray, NSYS3D10840

Order No.: 02P2382
EAN: 3606480160097
MPN:
NSYS3D10840
Series: Spacial S3D
NSYS3D10840 Schneider Electric Switch Cabinets, server cabinets
Image may differ
Unit Price (€ / pc.)
302.8431 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
302.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
302.8431 €

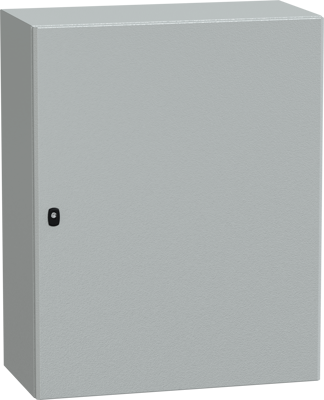

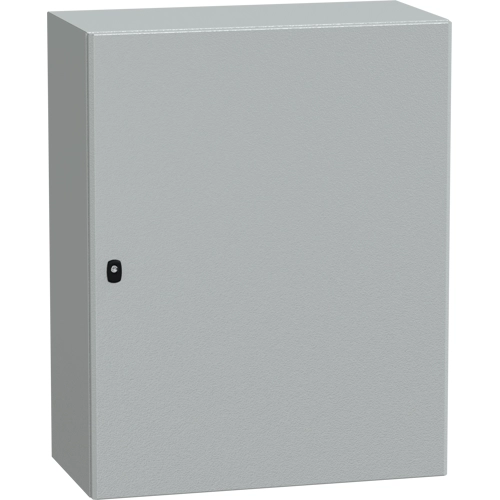

Wall mounted steel enclosure, NSYS3D10840, Schneider Electric

Spacial S3D steel wall-mounting enclosure is designed to provide multi-purpose protection in harsh environments. It is certified by DNV, cUL, UL, BV, LR, and GL and is rated NEMA 4 x /13 and IK10 (IEC62262) for high impact. The enclosure has an IP66 rating (IEC60529) to protect against dust and water. This enclosure has a nominal height, width and depth of 1000 mm, 800 mm and 400 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, two cable gland plates, one plain door and a lock.

The door is reversible and can be opened up to 120°, allowing easy access to the equipment inside. The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plates can be removed for maintenance purposes, the net weight of the enclosure is 42 kg. The enclosure has a single piece body and a gutter-shaped front rail double sheet thickness for added strength It is accessible from the front for operation.

Technical specifications
Breite 800 mm
Farbe lichtgrau
Höhe 1000 mm
Material Stahl
Produkt-Art Wandschrank
Schutzart (IP) IP66
Tiefe 400 mm
Logistics
Ursprungsland FR
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
