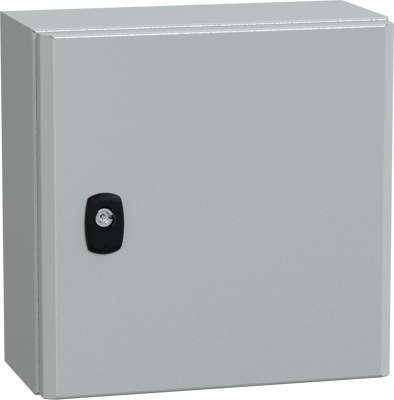

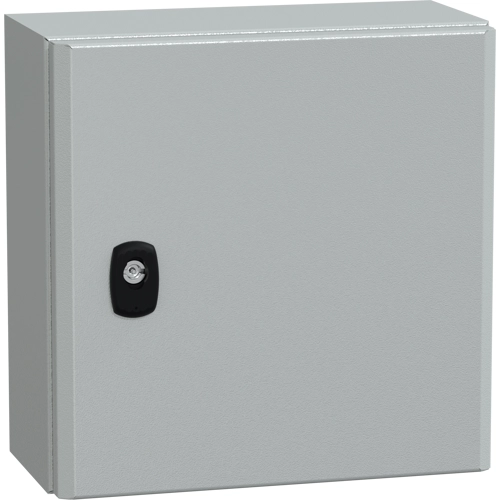

Wall mounted steel enclosure, NSYS3D3315, Schneider Electric
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications and is ideal for use in harsh environments. It is certified by GL, LR, DNV, cUL, UL and BV and has a nominal height, width and depth of 300 mm, 300 mm and 150 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, one door, one lock and one cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 4,03 kg It is rated NEMA 4X/13 and IK10 (IEC62262) for high impact and has a high resistance to dust and water with an IP66 rating (IEC60529). This enclosure has a single piece body and a gutter-shaped front rail double sheet thickness for added strength the accessibility for operation is from the front.
