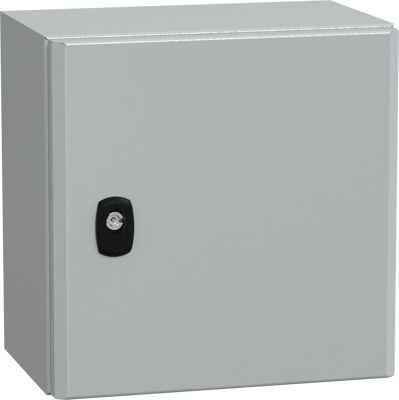

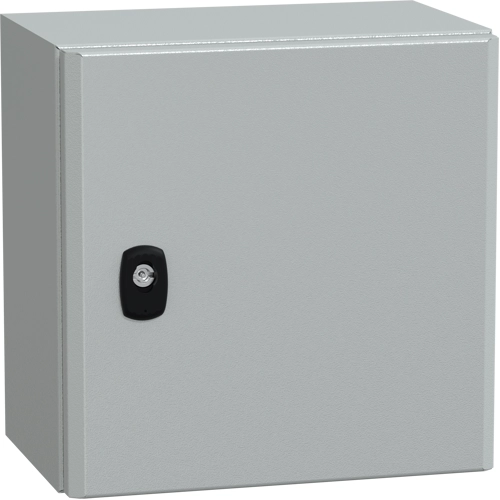

Wall mounted steel enclosure, NSYS3D3320, Schneider Electric
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. It has an enclosure nominal height, width and depth of 300 mm, 300 mm and 200 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, one door, one lock and one cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 4,562 kg It is certified by DNV, BV, UL, LR, cUL and GL. The enclosure has a NEMA 4X/13 rating and a IK10 (IEC62262) rating, providing high impact resistance. It has a high resistance to dust and water with an IP66 rating (IEC60529). This variant has a single piece body and a gutter-shaped front rail double sheet thickness, making it suitable for various applications the accessibility for operation is from the front.
