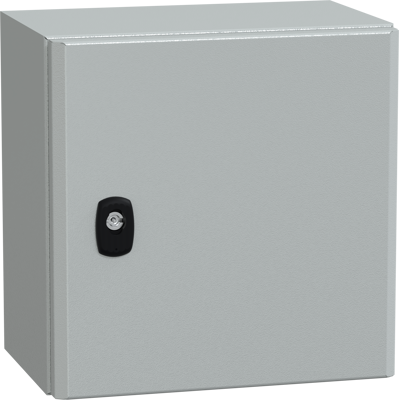

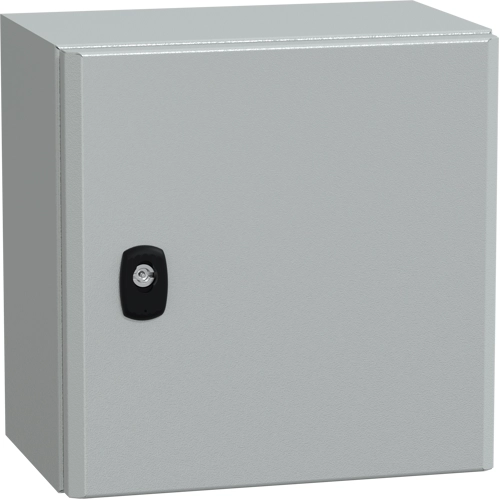

Wall mounted steel enclosure, NSYS3D3320P, Schneider Electric
Spacial S3D is a multi-purpose wall-mounting steel enclosure designed for use in harsh environments. It has a nominal height, width and depth of 300 mm, 300 mm and 200 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, a mounting plate, a plain door with a 3 mm double-bar lock, and a cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door and the cable gland plate can be removed for maintenance purposes, as well as the mounting plate by fixing element, the net weight of the enclosure is 5,47 kg It is certified by DNV, cUL, GL, BV, LR and UL and has a NEMA 4X/13 rating and an IK10 (IEC62262) and an IP66 (IEC60529) rating. This enclosure has a gutter-shaped front rail double sheet thickness and a single piece body for added strength the accessibility for operation is from the front.
