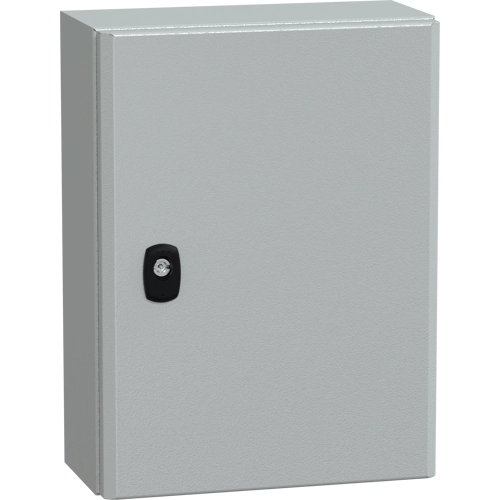

Wall mounted steel enclosure, NSYS3D4315, Schneider Electric
Spacial S3D is a monobloc wall-mounting enclosure for multi-purpose applications. It is designed to withstand harsh environments, with a NEMA 4 x /13 rating and an IK10 rating (IEC62262) for high impact resistance the enclosure is also IP66 rated (IEC60529), making it dust-tight and water-tight. This enclosure has a nominal height, width and depth of 400 mm, 300 mm and 150 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish.
The enclosure consists of a body, a door, a lock and a cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible). The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 4,9 kg It is certified by UL, BV, LR, cUL, GL and DNV standards.
