Wall mounted steel enclosure, NSYS3D4315P, Schneider Electric

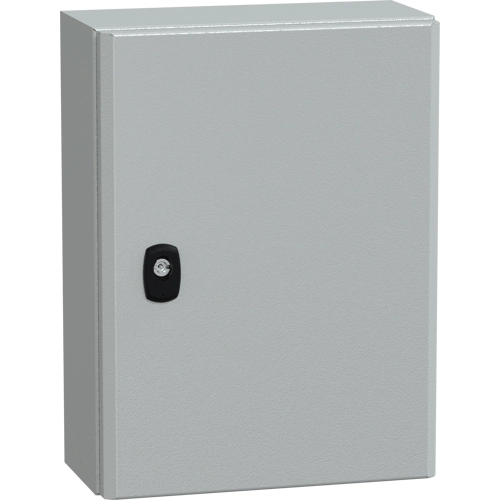

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications. It has a nominal height, width and depth of 400 mm, 300 mm and 150 mm, respectively the enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, a galvanised steel mounting plate, a plain door with a lock, and a cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a 3 mm double-bar lock insert. The door and the cable gland plate can be removed for maintenance purposes, and the mounting plate can be removed using a fixing element, the net weight of the enclosure is 6,08 kg It is certified to UL, cUL, LR, BV, DNV and GL standards and has a NEMA 4X/13 rating and IK10 (IEC62262) and IP66 (IEC60529) ratings It also has a gutter-shaped front rail double sheet thickness and a single piece body The enclosure can be accessed from the front.
