Wall mounted steel enclosure, NSYS3D4420, Schneider Electric

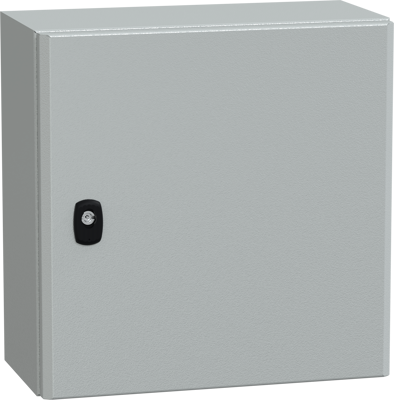

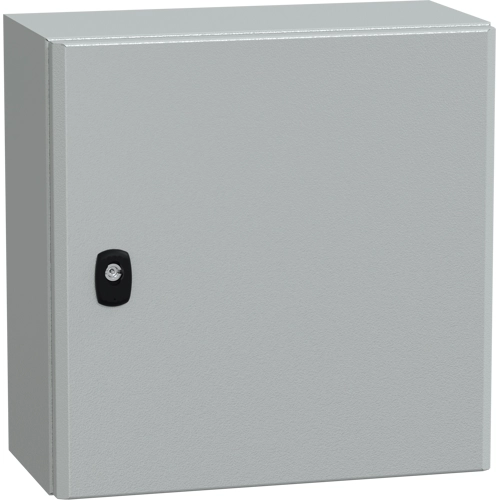

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications. It is certified by LR, GL, UL, DNV, BV and cUL, ensuring its high quality and reliability. It has a nominal height, width and depth of 400 mm, 400 mm and 200 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, one door, one lock and one cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 6,5 kg It has a NEMA 4X/13 rating and is capable of withstanding high impacts with its IK10 (IEC62262) rating and has a high resistance to dust and water with an IP66 rating (IEC60529) It also has a gutter-shaped front rail double sheet thickness and a single piece body for added protection.
