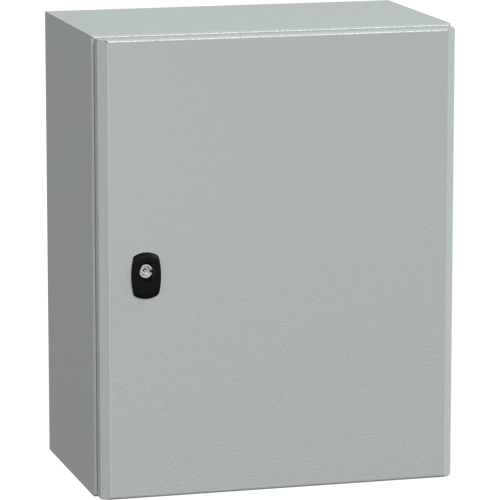

Wall mounted steel enclosure, NSYS3D5425, Schneider Electric
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications It is suitable for use in harsh environments, as. It has a high impact resistance with an IK10 rating (IEC62262) and a high dust and water resistance with an IP66 rating (IEC60529). The enclosure has a nominal height, width and depth of 500 mm, 400 mm and 250 mm, respectively It is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish.
The enclosure consists of a body, one door, one lock and one cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible). The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 10,2 kg It is certified by DNV, UL, BV, LR, cUL and GL.
