Wall mounted steel enclosure, NSYS3D6420P, Schneider Electric

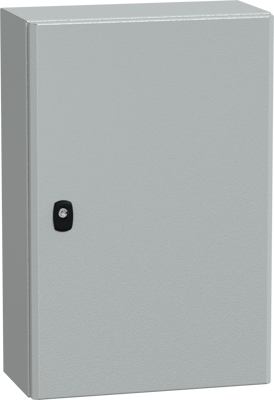

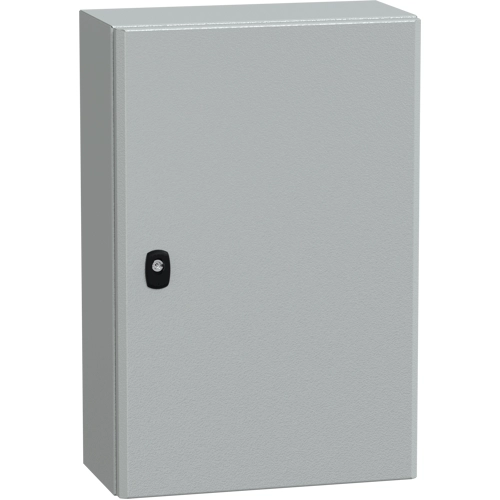

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications. It is certified by LR, GL, UL, cUL, DNV and BV, providing assurance of its quality. The enclosure has a nominal height, width and depth of 600 mm, 400 mm and 200 mm, respectively It is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, a mounting plate, one plain door with a lock and a cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, while the mounting plate can be removed by fixing element, the net weight of the enclosure is 13 kg It has a NEMA 4X/13 rating and is highly resistant to dust and water with an IP66 rating (IEC60529) It is also highly impact-resistant with an IK10 rating (IEC62262). The enclosure also features a single piece body and a gutter-shaped front rail double sheet thickness.
