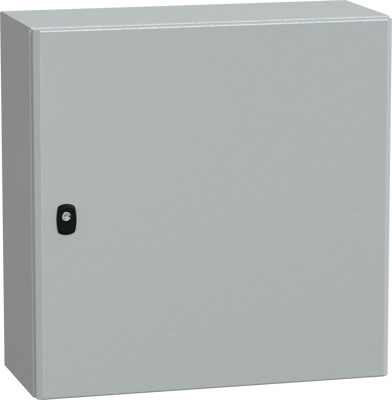

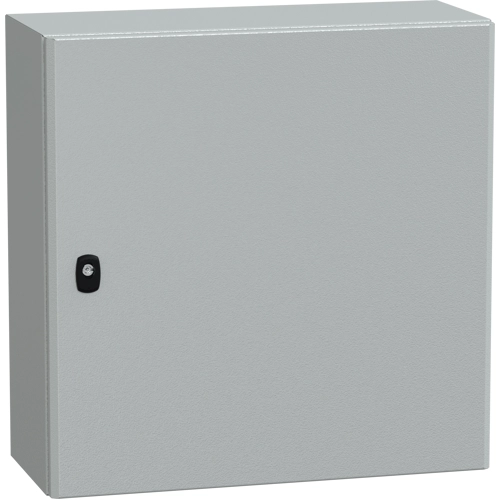

Wall mounted steel enclosure, NSYS3D6625, Schneider Electric
Spacial S3D steel Monobloc wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. It has an IK10 (IEC62262) rating, providing high impact resistance and an IP66 (IEC60529) rating, making it dust and water tight. This enclosure has a nominal height, width and depth of 600 mm, 600 mm and 250 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish.
The enclosure consists of a body, a plain door, a lock and a cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible). The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 15 kg It is certified according to cUL, DNV, GL, BV, LR and UL standards.
